Panasonic PLASMA TH42PV60A BLINKS

Panasonic PLASMA TH42PV60A BLINKS

Panasonic PLASMA TH42PV60H BLINKS

Panasonic PLASMA TH42PV60M BLINKS

Panasonic PLASMA TH42PV60MT BLINKS

GP9DE CHASSIS

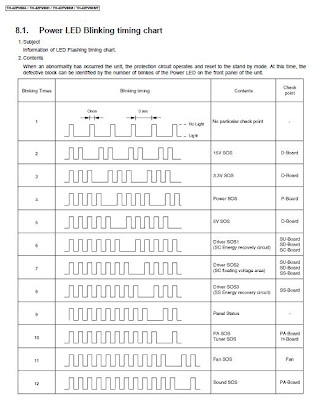

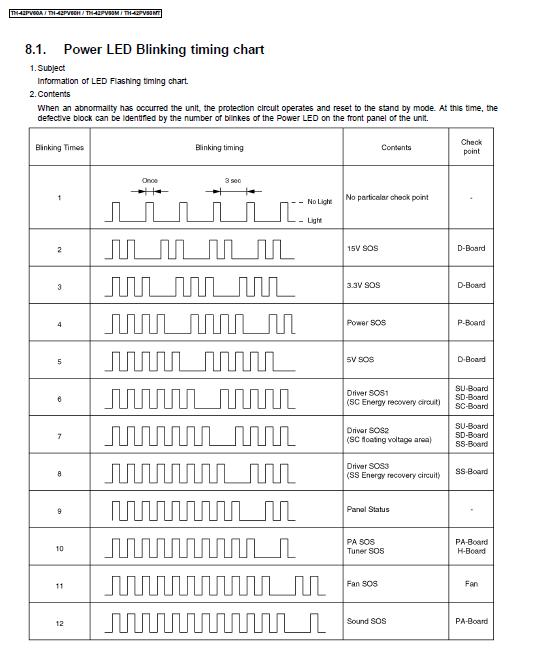

Power led blinking timing chart
power led blinking 1 time
power led blinking 2 times
power led blinking 3 times
power led blinking 4 times
power led blinking 5 times
power led blinking 6 times
power led blinking 7 times
power led blinking 8 times
power led blinking 9 times
power led blinking 10 times
power led blinking 11 times
power led blinking 12 times



Click Here to Download

Boards

Click Here to download

Sony LED LCD ex 300,400,600 blinking code

Sony LCD KLV26EX300 BLINKING CODE
Sony LCD KLV32EX300 BLINKING CODE
Sony LCD KLV40EX300 BLINKING CODE
Sony LCD KLV46EX300 BLINKING CODE
Sony LCD KLV26EX400 BLINKING CODE
Sony LCD KLV32EX400 BLINKING CODE
Sony LCD KLV40EX400 BLINKING CODE
Sony LCD KLV46EX400 BLINKING CODE

Sony LED KLV26EX600 BLINKING CODE
Sony LED KLV32EX600 BLINKING CODE
Sony LED KLV40EX600 BLINKING CODE
Sony LED KLV46EX600 BLINKING CODE

Sony LCD KLV26EX300 BLINKING TIMES
Sony LCD KLV32EX300 BLINKING TIMES
Sony LCD KLV40EX300 BLINKING TIMES
Sony LCD KLV46EX300 BLINKING TIMES
Sony LCD KLV26EX400 BLINKING TIMES
Sony LCD KLV32EX400 BLINKING TIMES
Sony LCD KLV40EX400 BLINKING TIMES
Sony LCD KLV46EX400 BLINKING TIMES

Sony LED KLV26EX600 BLINKING TIMES
Sony LED KLV32EX600 BLINKING TIMES
Sony LED KLV40EX600 BLINKING TIMES
Sony LED KLV46EX600 BLINKING TIMES
1,2,3,4,5,6,7



For More information about Repairing And tips of Repairing
Feel Free to call Mr. yogesh 9811440932(Delhi)


To Download Sony EX300,EX400,EX600 Blinking chart
Click here To Download

Sony Lcd Klv32v400a Blink codes

Blinks Code For
Sony Lcd Klv26v400a
Sony Lcd Klv26v400g
Sony Lcd Klv32v400a
Sony Lcd Klv32v400g
Sony Lcd Klv40v400a
Sony Lcd Klv40v400g
Sony Lcd Blink Code For 32v400a
Sony Lcd Blinking times For 32v400a






For More information about Repairing And tips of Repairing
Feel Free to call Mr. yogesh 9811440932(Delhi)


To Download Sony v400 Blinking chart
Click here To Download

LG LCD Full Hd LVDS CABLE

LG lcd full hd lvds cable configuration
lg 42" LCD full HD LVDS Conector Configuration
Full Hd lvds Configuration
LG lvds 51 Pin configuration
LG t-Con 51 pin configuration

Sony Lcd Klv32t400a Blink codes

Blinks Code For
Sony Lcd Klv26t400a
Sony Lcd Klv26t400g
Sony Lcd Klv32t400a
Sony Lcd Klv32t400g
Sony Lcd Klv40t400a
Sony Lcd Klv40t400g
Sony Lcd Blink Code For 32t400a



For More information about Repairing And tips of Repairing
Feel Free to call Mr. yogesh 9811440932(Delhi)


To Download Sony t400 Blinking chart
Click here To Download

Sony Lcd 32s310a Blink Code

Sony Lcd Klv26s310a
Sony Lcd Klv32s310a blinks
Sony Lcd Klv40s310a blinks
Sony Lcd Klv26v310a blinks
Sony Lcd Klv32v310a blinks
Sony Lcd Klv40v310a blinks
Sony Lcd Klv26d310a blinks
Sony Lcd Klv32d310a blinks
Sony Lcd Klv40d310a blinks
Sony Lcd Klv26u310a blinks
Sony Lcd Klv32u310a blinks
Sony Lcd Klv40u310a blinks
Blink code

2time----- Abnormal Main Power Voltage abnormal

3time----- Abnormal Panel Voltage(DCALERT1)

4time----- D5V/9V Power Voltage(DCALERT2)

5time----- (DCALERT3)

6time----- Backlight Failure(Inverter Board)

7time----- Internal temperature Rise

8time----- Audio Voltage(audio error)

9time----- FAN ERROR(HFR model only)

10time----- Digital FE error

11time----- Trident Bus Error(Trident Communication B/t IC)

12time----- HFR Error

13time----- Balance Error


For More Information about FE, Trident Bus ,HFR
feel Free to call Mr Yogesh 9811440932(Delhi)

Download Sony 310 Blink Chart
Click Here To Download

Sony Lcd 32s300a Blink Code

Sony Lcd Klv26s300a
Sony Lcd Klv32s300a blinks
Sony Lcd Klv40s300a blinks
Sony Lcd Klv26v300a blinks
Sony Lcd Klv32v300a blinks
Sony Lcd Klv40v300a blinks
Sony Lcd Klv26d300a blinks
Sony Lcd Klv32d300a blinks
Sony Lcd Klv40d300a blinks
Sony Lcd Klv26u300a blinks
Sony Lcd Klv32u300a blinks
Sony Lcd Klv40u300a blinks
Blink code

2time----- Abnormal Main Power Voltage abnormal

3time----- Abnormal Panel Voltage(DCALERT1)

4time----- D5V/9V Power Voltage(DCALERT2)

5time----- (DCALERT3)

6time----- Backlight Failure(Inverter Board)

7time----- Internal temperature Rise

8time----- Audio Voltage(audio error)

9time----- FAN ERROR(HFR model only)

10time----- Digital FE error

11time----- Trident Bus Error(Trident Communication B/t IC)

12time----- HFR Error

13time----- Balance Error


For More Information about FE, Trident Bus ,HFR
feel Free to call Mr Yogesh 9811440932(Delhi)

Download Sony 300 Blink Chart
Click Here To Download

Sony Lcd 32s200a Blink Codes

Blink codes for all sony Klv S200 Model

Blink codes for sony klv23s200a
Blink codes for sony klv26s200a
Blink codes for sony klv32s200a
Blink codes for sony klv40s200a


1time---- abnormal AU Power Voltage(DCALERT3)
2time---- abnormal D5V/9V Power Voltage(DCALERT2)
3time---- Abnormal Panel Voltage(DCALERT1)
4time---- Backlight Failure(Inverter Board)
5time---- Abnormal Main Power Voltage
6time---- Audio Voltage(audio error)
7time---- Internal temperature Rise
8time---- IC5000

For More Information and Repairng Tips Feel Free to call
Mr. Yogesh 9811440932(delhi)

Download Blinks of Sony 200a
Click Here To Download Chart

LG lcd service mode

How to Open Factory Mode in LG Lcd
How to Open Service Mode in LG Lcd
Methods 1 LG Service Menu Access Method 1
2 LG Service Menu Access Method 2
3 LG Service Menu Access Method 3
4 LG Service Menu PIN/Password Codes


LG Service Menu Access Method 1 Press and Hold button on remote as well as TV
panel at the same time for a few seconds.

LG Service Menu Access Method 2 Press and hold the {MENU} button on the remote and
the {MENU} button on the TV at the same time for at least 5-7 seconds.



LG Service Menu Access Method 3 Press and hold the {MENU} button ON THE REMOTE until
a 4-digit password screen is displayed.

LG Service Menu PIN/Password Codes 8 7 4 1
8 7 4 3
7 7 7 7
0 0 0 0
8 8 7 8
0 4 1 3

Samsung Lcd Factory Mode

How to open factory mode of samsung lcd
To open service mode in Samsung lcd
To open factory mode in Samsung lcd

press power off
display-->menu-->mute-->power on

this service code is applicable for only samsung lcd and led
for all models
samsung la32c3350
samsung la32r81
samsung la32r71a_b
samsung le40r81
samsung la32m81
samsung la40m81
samsung ln40n81

sony lcd factory mode

how to open sony lcd service mode
how to open sony lcd factory mode

To open factory mode of sony lcd press
step1-power off
step2-display
step3-press 5
step4-vol+

To save factory setting press 0 and mute
sony klv32s200
sony klv32s300
sony klv32s400
sony klv32t400
sony klv32s550
sony klv32v550
sony klv32v300
sony klv32d300
sony klv32u300
sony klv32s310
sony klv32v310
sony klvs32a10
sony klv32d310
sony klv32u310
sony klv32v400
sony klv32t550
sony klv32bx300
sony klv32bx3600
sony klv32bx400
sony klv32bx600
sony klv32ex400
sony klv32ex600
sony klv40zx1m
sony klv26s200
sony klv26s300
sony klv26s400
sony klv26t400
sony klv26s550
sony klv26v550
sony klv26v300
sony klv26d300
sony klv26u300
sony klv26s310
sony klv26v310
sony klvs26a10
sony klv26d310
sony klv26u310
sony klv26v400
sony klv26t550
sony klv26bx300
sony klv26bx3600
sony klv26bx400
sony klv26bx600
sony klv26ex400
sony klv26ex600
sony klv40zx1m
sony klv40s200
sony klv40s300
sony klv40s400
sony klv40t400
sony klv40s550
sony klv40v550
sony klv40v300
sony klv40d300
sony klv40u300
sony klv40s310
sony klv40v310
sony klvs40a10
sony klv40d310
sony klv40u310
sony klv40v400
sony klv40t550
sony klv40bx300
sony klv40bx3600
sony klv40bx400
sony klv40bx600
sony klv40ex400
sony klv40ex600
sony klv40zx1m

Philips Lcd Service Mode(Factory Mode)

Philips service Mode
100% working
Reply if Your Problem is Solved
Philips Service Mode for Philips Lcd 32 and 42 inch.
step 1. Press Menu.
step 2. press 062596+menu.
step 3. press Menu again.
step 4. press upper ^ ARROW BUTTON(once).
step 5. press right > arrow button(oncer).
Here is your service Mode
